Inline-4 Engine

Case Western Reserve University, 2017 · Team lead, piston design, materials and manufacturing

A 1.6 L motorcycle engine that eleven of us designed from a blank page in one semester for our senior capstone. I led the team, designed the piston, and picked how every part we designed would be made.

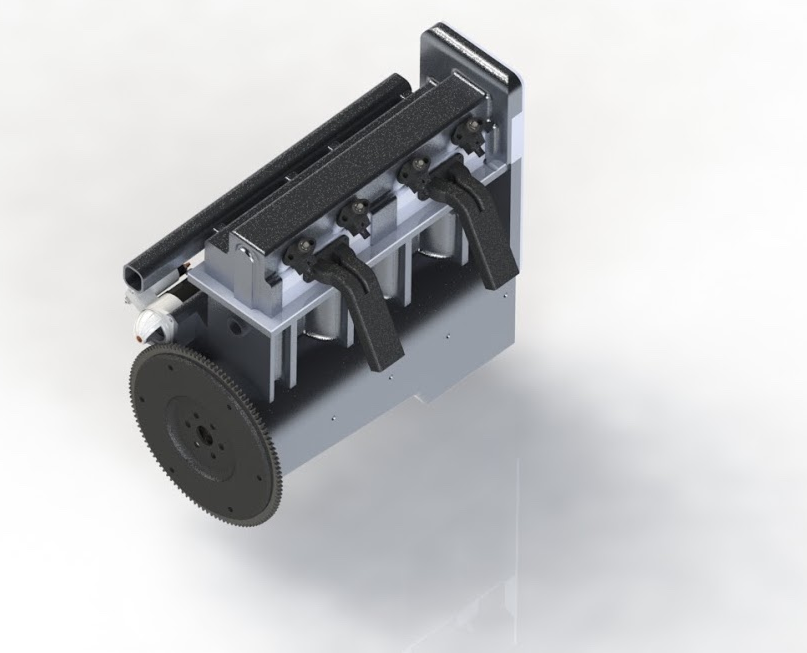

Rendered CAD model of the complete inline-4 engine with flywheel, block, cylinder head and manifolds — Fig. 1. The full engine in SolidWorks.

Table 1. Specifications
Engine	Inline-4, 1600 cc, 10:1 compression, single overhead cam with 2 valves per cylinder, direct injection, liquid cooled
Operating range	800 rpm idle, 5000 rpm all day, 6500 rpm redline.
Tools	SolidWorks for CAD, FEA and file control, Matlab for the combustion, torque and cam models, CES EduPack for costing
Cost	$4,685 per engine, under the $5,000 ceiling

TL;DR. Our class was given a fictitious customer who wanted a motorcycle engine. We designed every part of it in CAD, worked out how each one would be manufactured and what it would cost, and checked that nothing would bend, crack or overheat. My part was the piston, the materials for every part, and keeping eleven people on schedule.

1. The brief

The customer wanted a fuel-injected four-stroke between 1500 and 1800 cc. It had to idle at 800 rpm, run all day at 5000, and be built at 7,500 units a year, growing to 15,000. We had sixteen weeks and a $5,000 cost ceiling.

2. The piston

I started from what the crown has to survive, which is peak cylinder pressure pushing on it like a flat plate. Across four alloys the minimum thickness came out between 3.5 and 5.1 mm, so I set it at 6 mm before we had even picked a material. I also designed the three rings and the wrist pin.

The piston is metal injection molded in 420 stainless. Nobody ever sees the inside of a piston, so the gates, sliders and negative draft all go there. Molding holds the outside tighter than a casting, which means less time on the CNC, and it let me add ribs around the pin boss without adding weight. It comes out to about $55 a piston.

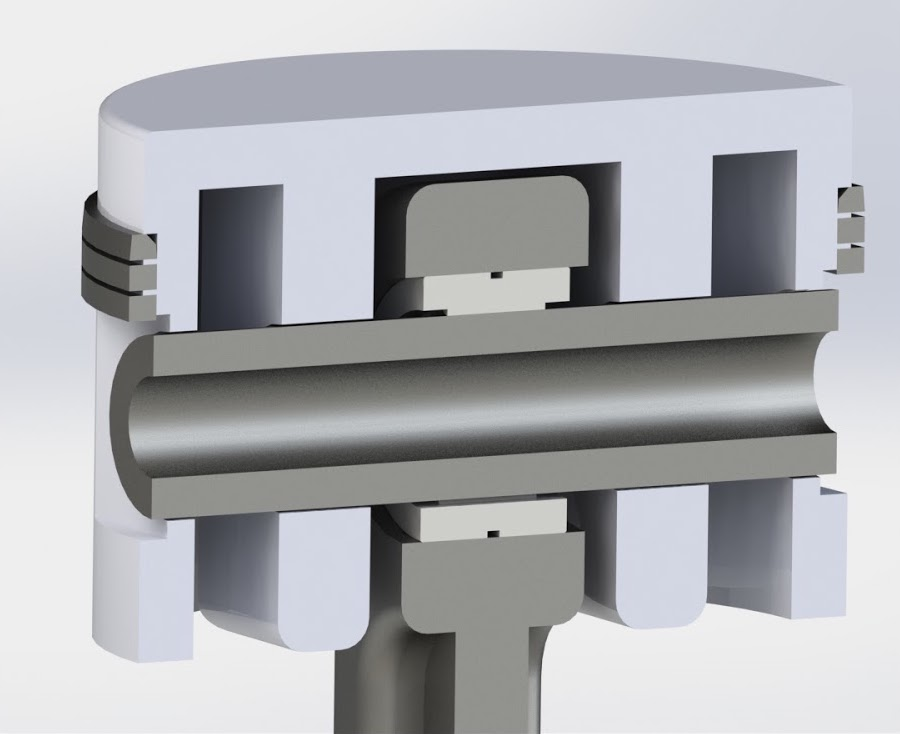

Section view of the piston showing the crown, three ring grooves, the wrist pin and the top of the connecting rod — Fig. 2. The piston in section, and its FEA under peak combustion pressure.

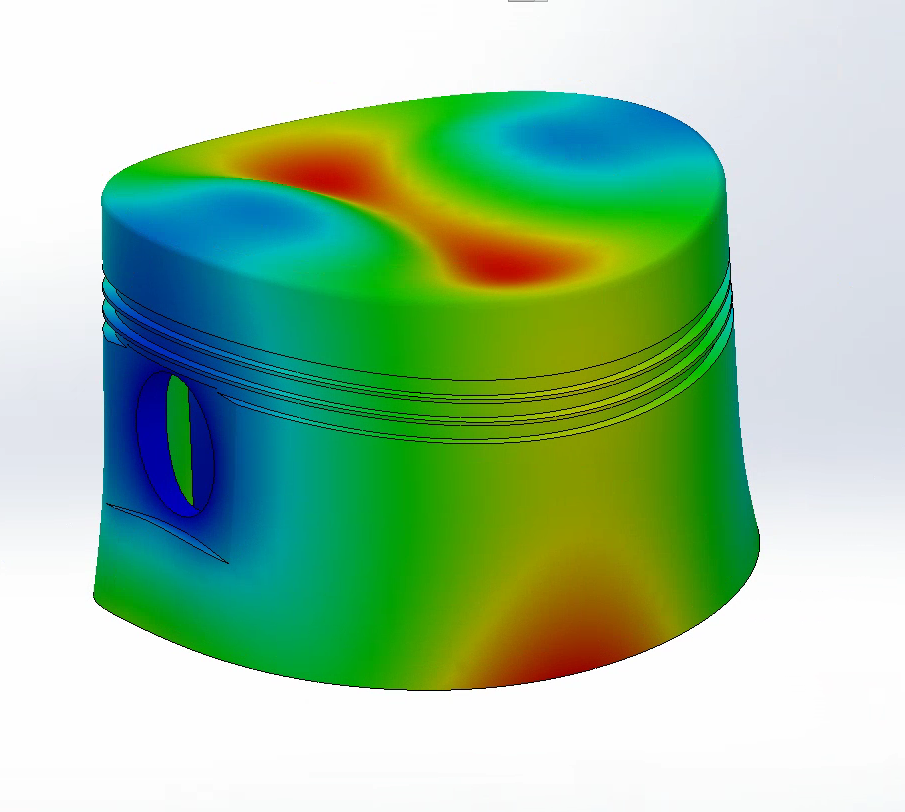

Finite element plot on the piston, colored from blue to red — Fig. 2. The piston in section, and its FEA under peak combustion pressure.

3. Bottom end

The rods are forged 4140 with an I-beam section. They're five times as long as the crank radius, so the piston pushes into the cylinder wall less. The crank is one forged piece of 4340 with the counterweights built in. A flat-crank four cancels its main shaking forces on its own, and under 2 liters the engine mounts can soak up what's left, so we skipped balance shafts.

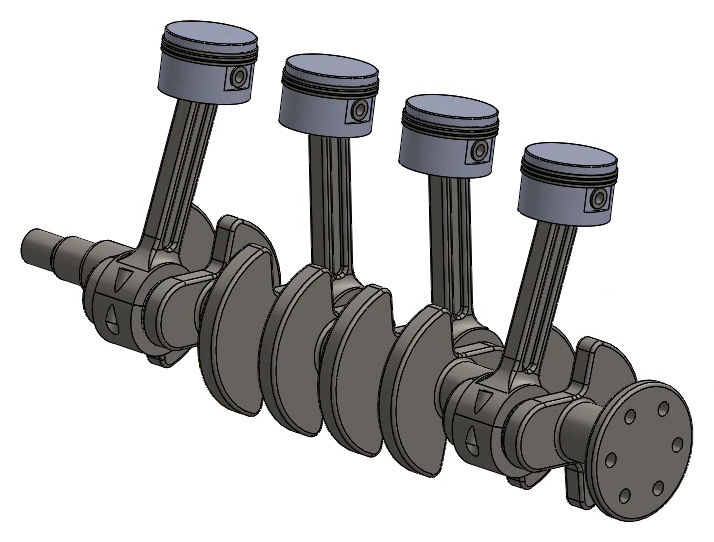

Crankshaft with four connecting rods and pistons — Fig. 3. The crank, rods and pistons.

4. Top end and block

The aluminum head uses a wedge chamber borrowed from old Ford small blocks, which squeezes the mixture toward the spark plug. Our first valvetrain had rocker arms running 1:1, so they weren't doing anything. We pulled them and put the cam right on the tappets. The block is sand-cast aluminum with pressed-in steel sleeves. Coolant runs past the cylinders one after another, and the head gets its own parallel loop so every cylinder sees the same cool water.

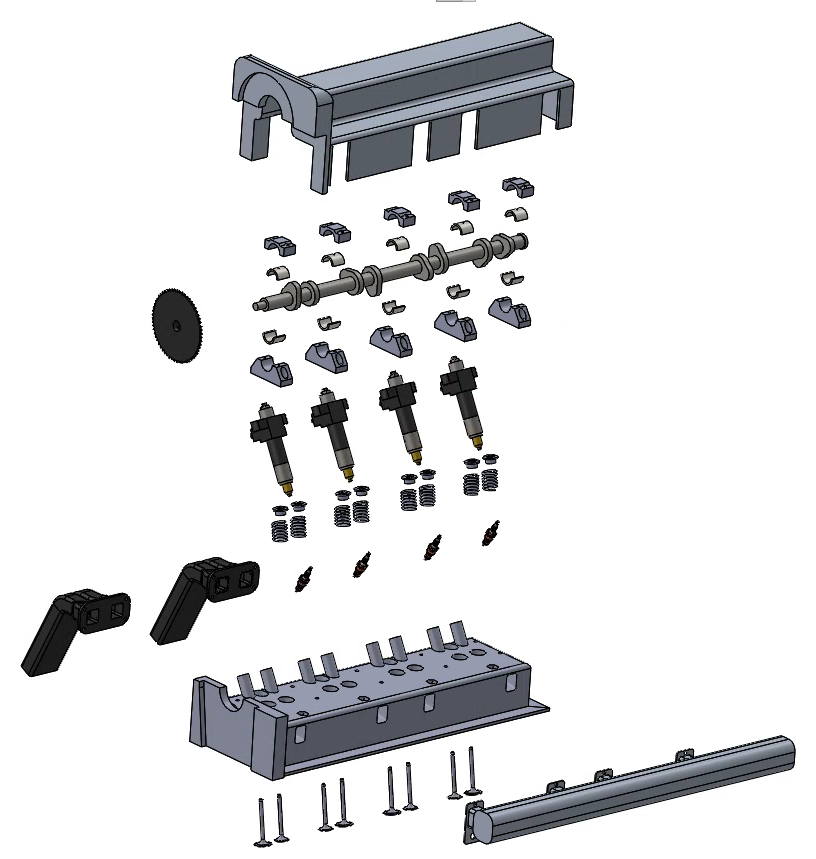

Exploded view of the valve cover, camshaft, cam bearings, tappets, valves, cylinder head and manifolds — Fig. 4. Exploded view of the head and valvetrain.

5. How we proved it worked

We never got to build it, so everything had to hold up on paper. Step by step:

Find the worst moment for each part. For most of them that's a cylinder firing at 6500 rpm.
Check it by hand with the textbook equations.
Check it again in SolidWorks FEA or a Matlab model, and make sure the two agree.
Cost every part at its real batch size, then compare against what aftermarket parts sell for.
Run an FMEA, and trace every customer requirement to the spot in the design that meets it.

Table 2. The checks that mattered most
Connecting rod	Buckling safety factor of 7.85 by hand and 7.7 in FEA, under a 33.6 kN firing load
Crankshaft	Worst stress in the webs at 73.5 MPa. Normalizing the steel raised its fatigue safety factor from 2.6 to 4.4.
Valvetrain	Cam pressure angle of 26°, under the 30° limit. Intake flow at Mach 0.40, well short of choking.
Flywheel	Sized from Matlab torque curves to hold idle within 5% of 800 rpm
Cooling	Cylinder walls kept under 380 K

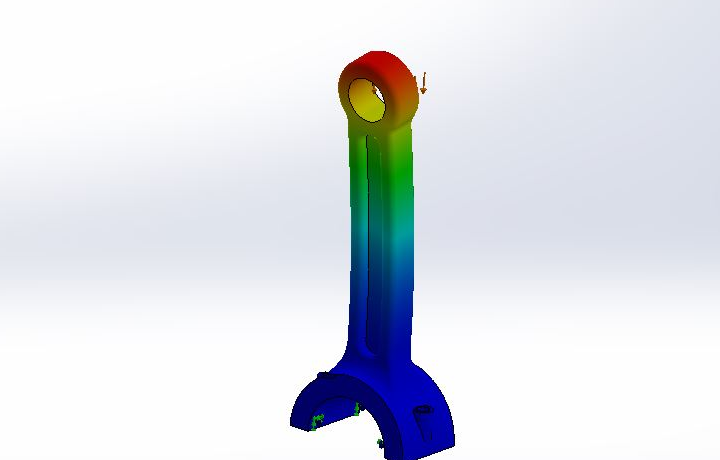

Buckling FEA plot of the connecting rod, colored from blue at the big end to red at the small end — Fig. 5. Buckling FEA on the connecting rod.

The last test was people. We had design reviews in weeks 4, 8 and 15 in front of the professor, the TAs and the class, and every number above had to hold up when somebody asked why - and I had to be the person who defended our decisions as the lead.

6. Running the team

We started with a sub-team for each system, and half the team ended up idle every other week. I switched us to action items pulled from each week's deliverable, each one with an owner, a due date and the people it depended on.

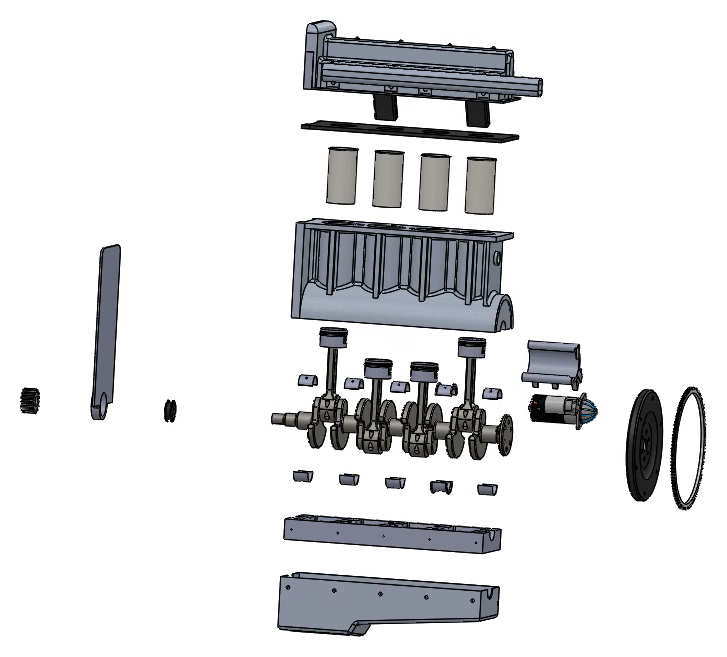

Exploded view of the whole engine, from valve cover down through head, block, crankshaft, flywheel and sump — Fig. 6. Exploded view of the whole engine.
